lifepo4 ups battery 12v 6ah 7ah 12v Battery

Lithium iron phosphate battery pack

LiFePO4 12V 6AH 7AH for solar street light UPS

Deep cycle long lifespan with over 2000 cycles guaranteed

More customized lithium battery pack and 12V lead acid replacement battery

contact us for sample testing and price List now.

Battery Type:

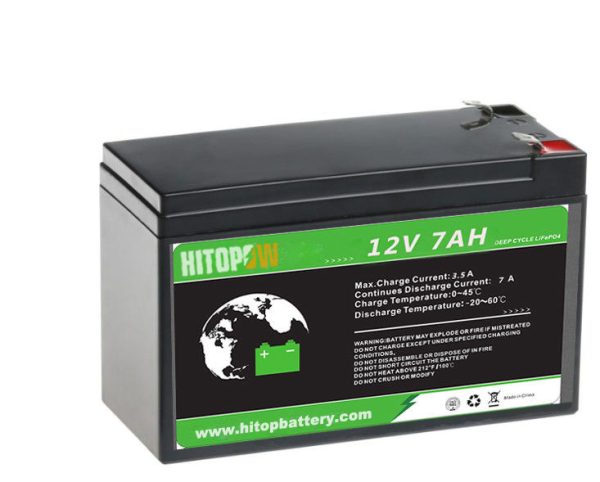

Lithium LiFePO4 Battery 12V 7Ah
Voltage:
12.8V
Capacity:
7Ah
Dimension:
151*65*94*100mm
Weight:
1.06kg
Guarantee
2 years

Product detailed Specifications

Item 12V 7Ah Specification
Model 12.8V 6Ah
Standard capacity(0.5C) Typical:7Ah
Min:7Ah
Rated voltage 12V
Energy 89.6wh
Internal resistance 90≤mΩ
Max.Charge voltage ≤14.6V(standard:14.6V)
Discharge Cut-off voltage 10V
Standard charge current 3.5A
Rated Continuous discharge current 7A
Peak current 20A 3S
Battery dimension 151*65*94*100mm
Weight(approx) 1.06KG
Interface charge/discharge:F2 terminal
Working Condition (CC/CV) Standard 0℃~40℃
 Humidity 50%~80%
Storage -20℃~60℃

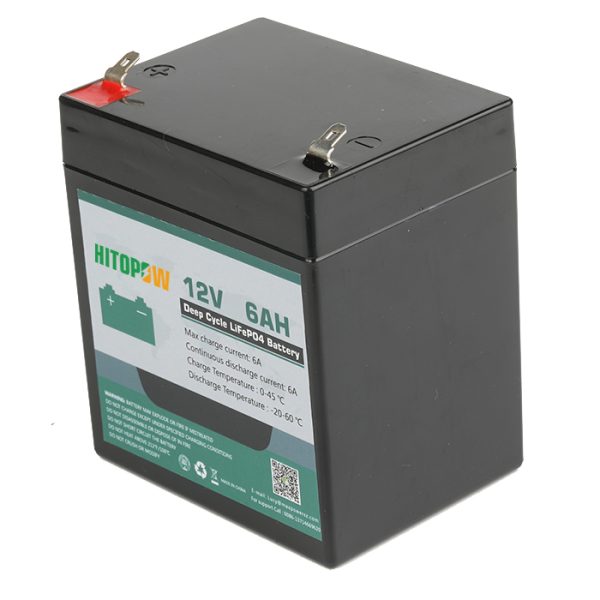

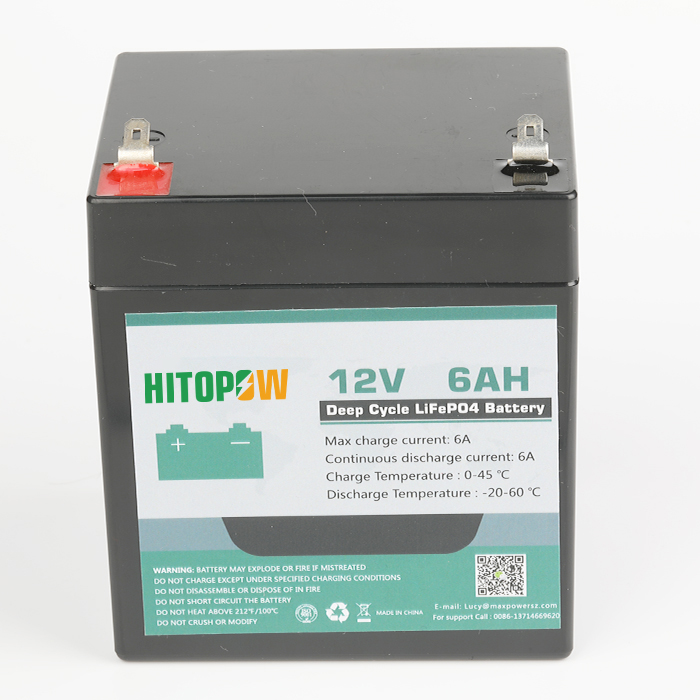

12v 6ah lithium battery

Item 12V 6Ah Specification
Model 12.8V 6Ah
Standard capacity(0.5C) Typical:6Ah
Min:6Ah
Rated voltage 12V
Energy 76.8wh
Internal resistance 70≤mΩ
Max.Charge voltage ≤14.6V(standard:14.6V)
Discharge Cut-off voltage 10V
Standard charge current 3A
Rated Continuous discharge current 6A
Peak current 20A 3S
Battery dimension 151*65*94*100mm
Weight(approx) 1.05KG
Interface charge/discharge:F2 terminal
Working Condition (CC/CV) Standard 0℃~40℃
 Humidity 50%~80%
Storage -20℃~60℃

Product Key Features

LiFePO4 12V 6AH 12V 7AH lithium battery pack for solar street light UPS

  • High energy power: Cylindrical lifepo4 battery cell inside to keep stable high power output
  • Fast charge: Support 1C fast charge with short time
  • Deep cycle Function: 100% deep cycle with fast charge and discharge efficiency
  • Safety design: built in BMS with overcharge overdischarge
  • Long warranty: Pure energy power support extra longer life more than 2000 cycles

Description

More Deep Cycle lifepo4 battery pack,contact us for e-catalogue

Model Voltage(V) Capacity(Ah) Max.
Discharging Curent(A)		 Max.
Charging Curent(A)		 Size
(L*W*H)
(mm)		 Weight(Kg)
HT-6V6AH 6 6 6 6 70*47*100 0.4
HT-12V6AH 12 6 6 6 90*70*101 0.7
HT-12V12AH 12 12 12 12 151*99*84 1.5
HT-12V18AH 12 18 18 18 181*77*170 2.3
HT-12V24AH 12 24 18 18 181*77*170 2.9
HT-12V30AH 12 30 18 18 181*77*170 3.5
HT-12V50AH 12 50 50 50 229*138*208 6
HT-12V100AH 12 100 100 100 256*165*210 10.5
HT-12V150AH 12 150 100 100 330*173*216 17.5
HT-12V200AH 12 200 100 200 490*171*240 23
HT-12V300AH 12 300 100 200 521*238*218 34
