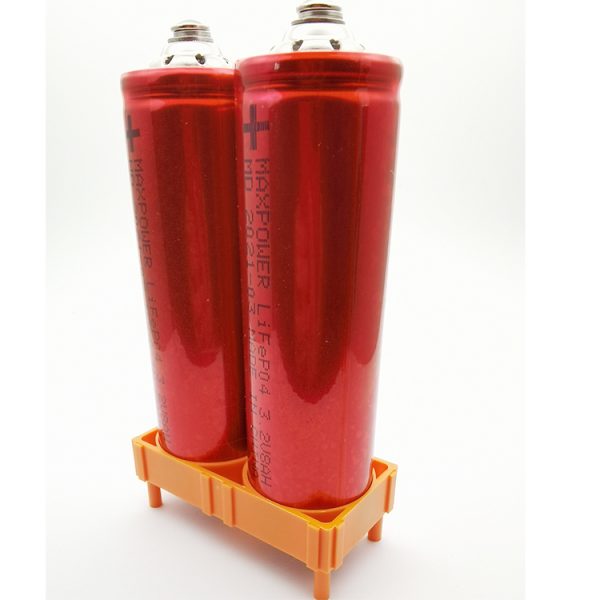

LiFePo4 Cell 3.2V 38120 38120S headway 38120HP 8Ah Forklift Lifepo4 Battery

Headway lifepo4 battery Cylindrical lifepo4 cell

High power discharge fast charge with long cycle life

best for the Forklift /power tools/ ebike /scooters .

Contact us now for free sample testing now!

Battery Type:
Lithium LiFePO4 Battery 38120HP

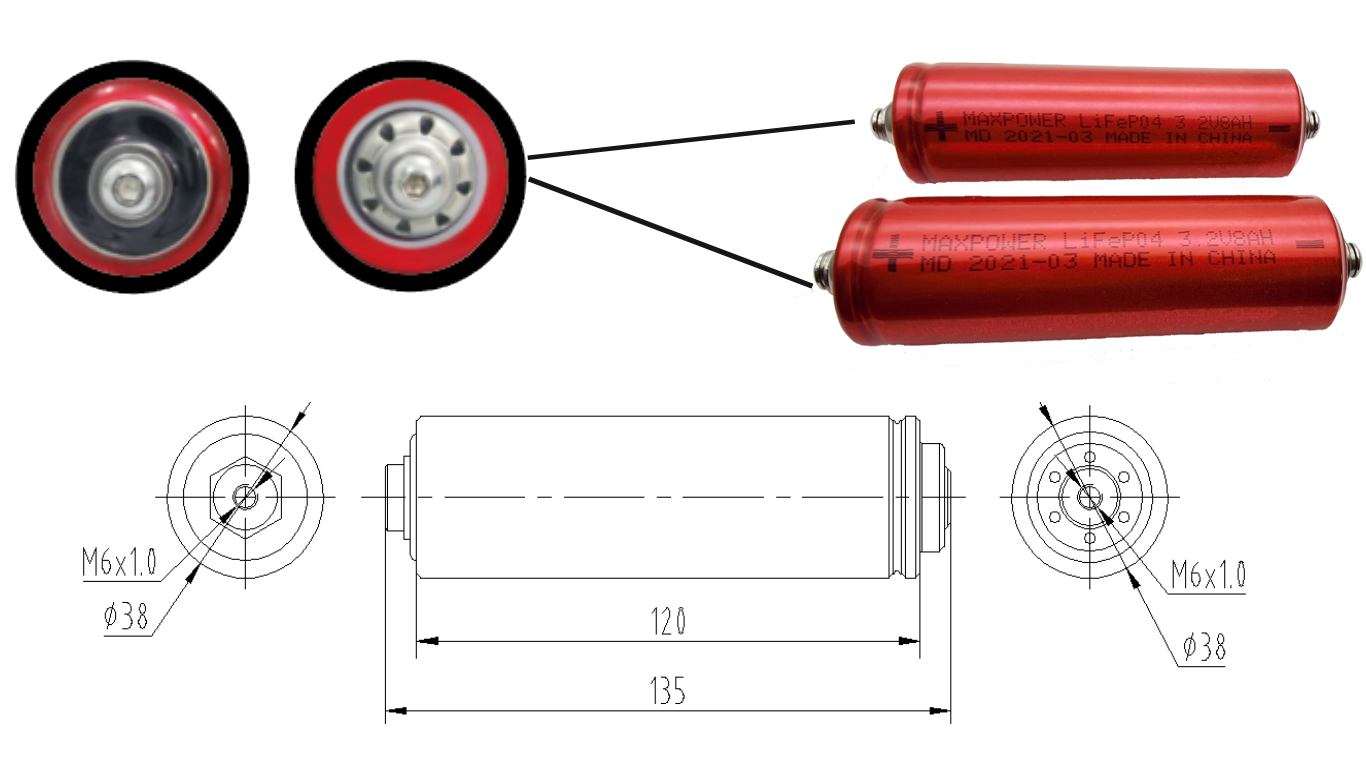

diamter:38mm Height :120mm
one year

Product detailed Specifications

LiFePo4 battery 38120HP 8Ah Specification
Nominal Voitage 3.2V
Nominal Capacity(0.5C,25℃) 8Ah
Weight(Approximate) 330±5g
Standard Discharge
Recommended Discharge Current 40A
Max. Continuous Current 120A
Max.30 sec.Pulse 240A
Cut-off Voltage 2.0V
Temperature rise @ 10C ≤20°C
Standard Charge
Charge Voltage 3.65V
Recommended Charge Current 24A
Max. Charge current 80A
Charge Time 15min(can be customized)
Temperature rise @5C ≤10°C
Internal Resistance ≤2.5mOhm
Self-discharge rate ≤2% per month
3C/3C cycle life ≥3000 Times
5C/5C cycle life ≥2000 Times

Product Key Features

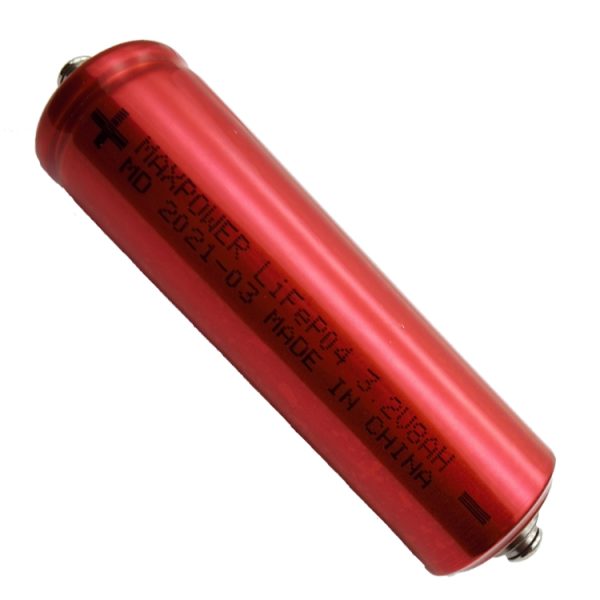

Rechargeable LiFePO4 Battery 38120HP 3.2V 8Ah high power lithium battery

High discharge rate : support 15C continuous discharge and 30C peak discharge

High Energy : Cylindrical lifepo4 battery cell with 8Ah or 10Ah real capacity

Long lifeSpan: Keep more than 3000 cycles with extra long working hours

Stable battery performance : Same rank high quality can assembly in series or parellel

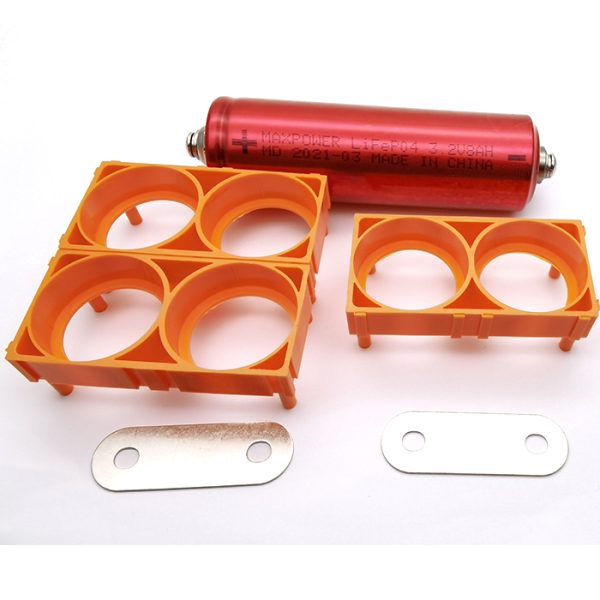

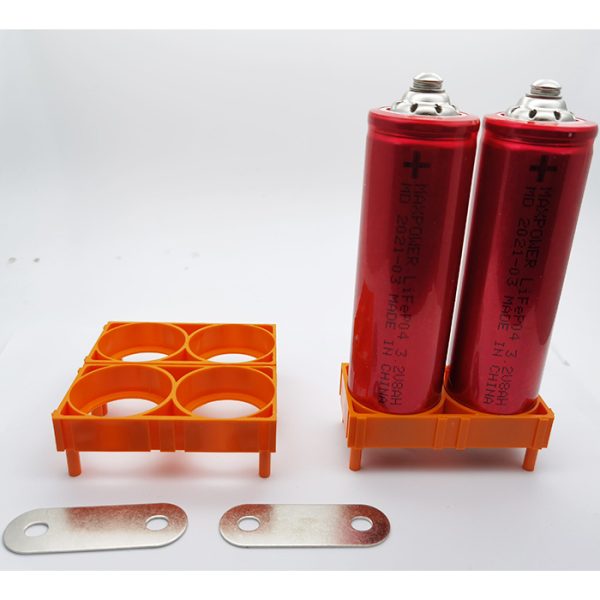

Easy Assembly: full set battery accessories available support the DIY lifepo4 battery module


Lithium lifepo4 battery 3.2V 8Ah application :

 Forklift,Golf car,low speed car, EV Car, Solar street light ,solar PV , UPS,DIY battery module,

high power tools,medical devices,army devices,scooter, ebike.

lifepo4 battery application
