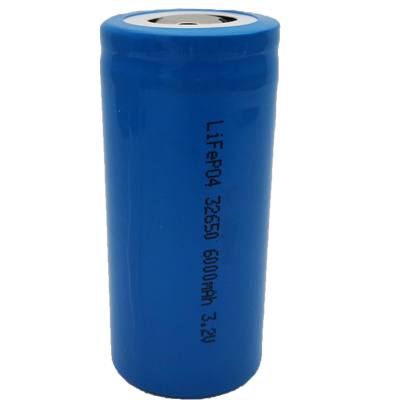

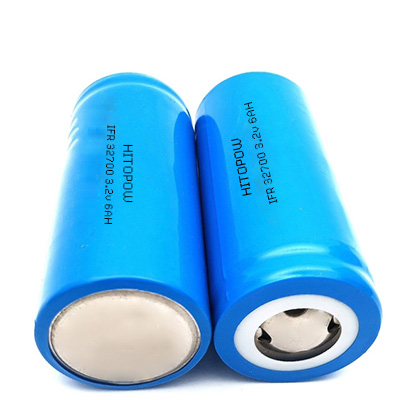

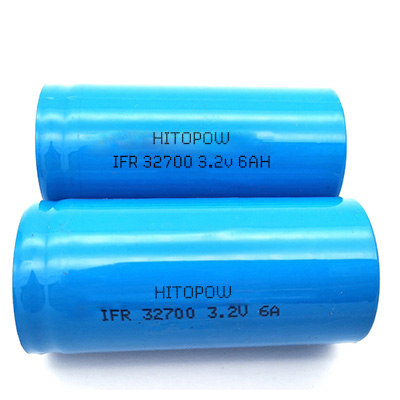

32700 lifepo4 battery cell 3.2V 6000mAh lifepo4 battery 32650 cell

Battery Type:
lithium lifepo4 rechargeable battery
Voltage:
3.2V
Capacity:
6000mAh
Dimension:
Diameter 32mm Height 70
Weight:
145g
Guarantee
2 years
Constant Discharge Current : :
6C 36A
Max.discharge Current: :
8C 48A

Product detailed Specifications

High energy 3.2V 6000mAh lithium ion Cylindrical battery for Electric Bike EV

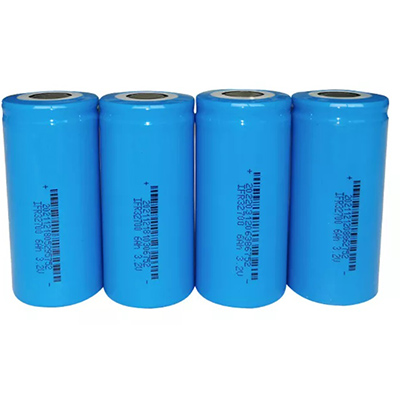

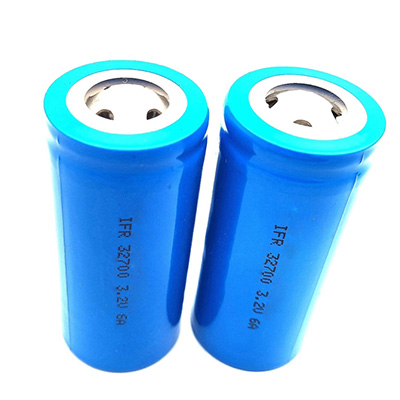

LiFePo4 32700 6Ah 3.2V battery

32650 6000mAh LFT Battery Specification

Rated Capacity

6200Ah

Minimum Capacity

6000Ah

Energy

19.2Wh

Dimension

Diamter 32*Height 70mm

Nominal Voltage

3.2V

Discharge cut-off voltage

2.0V

Charge limited voltage

3.65V

Internal resistance

≤10mΩ

Standard charge current

1C

Maximum charge current

3C

Standard discharge current

3C

Maximum discharge current

18A 36A

Pulse discharge current

30A 48A

Weight

Approx: 141Kg

Application

Motor Ebile boat starter RV EV ESS Solar system UPS

LiFePo4 32700 3.2V 6Ah sample lead time

3-5 working days

LiFePo4 32700 3.2V 6Ah Mass production

10-12 working days

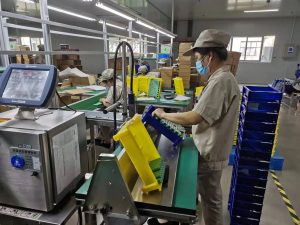

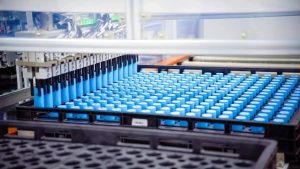

lifepo4 32700 production

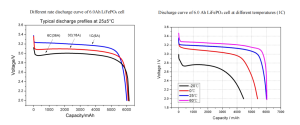

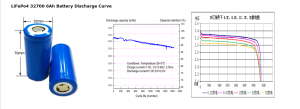

The lifepo4 battery cell 32700 3.2V battery performance technical info.:

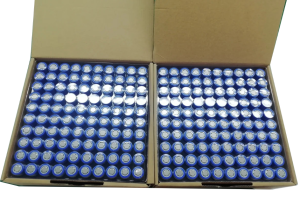

Cells packing: 100 cells per box 4 boxes per box
400 cells in total outer box size: 455*232*172mm

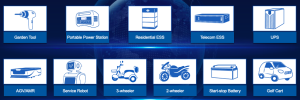

The Lithium lifepo4 32700 battery cell Application :

Best for the EV    AGV    E-BIKE   Power Tools  Golf Cart

Two wheels car   Three Wheels Car  Start-stop Car

Product Key Features

32700 lifepo4 battery 3.2V 6ah lithium lifepo4 battery cell 32700 32650 6000mAh

1. High Density: LFT cell 6000mAh real capacity support longer working time
2. High Rate: the lifepo4 cell is grade A quality 6C 36A discharge current max. 8C 48A
3. Long Cycle life: 80% DOD more than 6000 cycles 100% DOD more than 3000 cycles
4. No MOQ: The 32700 6Ah 3.2V or 32650 lifepo4 fresh stock 350K monthly output
5. UN38.3 lifepo4 : full delivery document MSDS UN38.3 IEC62133 CB UL OQC delivery report





Description

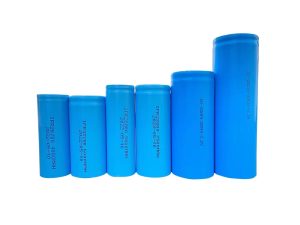

More related lifepo4 battery models available :

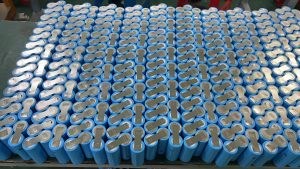

We can assembly 32700 lifepo4 battery cell into battery packs with BMS

Accept customized battery pack design

More lifepo4 battery models and related lithium battery models :

Model No. Voltage (V) Capacity (mAh) Energy (Wh) Rated Charge Current(mA) Rated discharge Current (mA) Max.Discharge current (mA) Charge Voltage (V) Discharge cut-off Voltage (V) Internal Resistance(mΩ) Max. Diameter (mm) Max. Height (mm) Weight (g)
IFR32730 3.2V 7000 22.4 1400 1400 21.0 3.65 2.0 8.0 32.5 73.5 150.0
IFR32700 3.2V 7000 22.4 1400 1400 21.0 3.65 2.0 8.0 32.5 70.9 145.0
IFR32700 3.2V 6750 21.6 1350 1350 20.3 3.65 2.0 8.0 32.5 70.9 145.0
IFR32700 3.2V 6500 20.8 1300 1300 19.5 3.65 2.0 8.0 32.5 70.9 145.0
IFR32700 3.2V 6250 20.0 1250 1250 18.8 3.65 2.0 8.0 32.5 70.9 145.0
IFR32700 3.2V 6000 19.2 1200 1200 18.0 3.65 2.0 8.0 32.5 70.9 145.0
IFR32700 3.2V 5500 17.6 1100 1100 16.5 3.65 2.0 8.0 32.5 70.9 144.0
IFR32650 3.2V 5000 16.0 1000 1000 15.0 3.65 2.0 20.0 32.5 70.9 143.0
IFR26700 3.2V 4000 12.8 800 800 12.0 3.65 2.0 15.0 26.5 70.5 90.0
IFR26650 3.2V 4000 12.8 800 800 12.0 3.65 2.0 15.0 26.5 66.5 86.0
IFR26650 3.2V 3800 12.2 760 760 11.4 3.65 2.0 15.0 26.5 66.5 86.0
IFR26650 3.2V 3600 11.5 720 720 10.8 3.65 2.0 15.0 26.3 66.5 86.0
Ni-MH Battery Model Table (K Means Low Temperature)
Ni-MH Battery (K Means Low Temperature)
Size Model Code Nominal Voltage (V) Nominal Capacity (mAh) Height (MM) Diameter (mm) Weight (g)
AAA AAA550K 1.2 550 43.5±0.5 10.0+0.5
AA AA1200K 1.2 1200 48.5±0.5 13.9+0.5
AA1400K 1.2 1400 48.5±0.5 13.9+0.5
AA1600K 1.2 1600 48.5±0.5 13.9+0.5
AA1800K 1.2 1800 48.5±0.5 13.9+0.5
4/5A 4/5A1600K 1.2 1600 42.5±0.5 16.5+0.5
A A2100K 1.2 2100 49.5±0.5 16.5+0.5
SC SC2500K 1.2 2500 42.5±0.5 22.0+0.5
SC3000K 1.2 3000 42.5±0.5 22.0+0.7
SC3500K 1.2 3500 42.5±0.5 22.0+0.7
C C3500K 1.2 3500 49.0±0.5 25.0+0.5
C4000K 1.2 4000 49.0±0.5 25.0+0.6
D D5000K 1.2 5000 60.0±0.5 32.0+0.5
D6000K 1.2 6000 60.0±0.5 32.0+0.5
D8000K 1.2 8000 60.0±0.5 32.0+0.5
D9000K 1.2 9000 60.0±0.5 32.0+0.5
F F10000K 1.2 10000 89.0±0.5 32.0+0.6
F13000K 1.2 13000 89.0±0.5 32.0+0.6
M M25000K 1.2 25000 89.0±0.5 41.0+0.6
Battery Type Rechargeable lithium ion battery
Product name Lithium lon 26650 Battery Cell
Brand Name HITOPOW
Capacity 5000mAh
Nominal Voltage 3.7V
Size Diameter 26.3*Height 65.2mm
Voltage 3.7V
End of Charge 4.2V
End of discharge 3.0V
Charge current 1C 5000mA
Discharge Current 3C 15A
Model Number Li-ion 26650 5000mAh 3.7V
Weight 90g
Application Ebike ,forklift,Power Tools , Flashlight, Toys, 3D Printer, Energy Storage, Electric Bike, Electric Communication Device, Beauty Medical Device
Battery Type Rechargeable lithium ion battery
Product name Lithium lon 26650 Battery Cell
Brand Name HITOPOW
Capacity 5000mAh
Nominal Voltage 3.7V
Size Diameter 26.3*Height 65.2mm
Voltage 3.7V
End of Charge 4.2V
End of discharge 3.0V
Charge current 1C 5000mA
Discharge Current 3C 15A
Model Number Li-ion 26650 5000mAh 3.7V
Weight 90g
Application Ebike ,forklift,Power Tools , Flashlight, Toys, 3D Printer, Energy Storage, Electric Bike, Electric Communication Device, Beauty Medical Device
Battery Type Rechargeable lithium ion battery
Product name Lithium Ion 26650 Battery Cell
Brand Name HITOPOW
Capacity 5000mAh
Nominal Voltage 3.7V
Size Diameter 26.3*Height 65.2mm
Voltage 3.7V
End of Charge 4.2V
End of discharge 3.0V
Charge current 1C 5000mA
Discharge Current 3C 15A
Model Number Li-ion 26650 5000mAh 3.7V
Weight 90g
Application Ebike ,forklift,Power Tools , Flashlight, Toys, 3D Printer, Energy Storage, Electric Bike, Electric Communication Device, Beauty Medical Device
